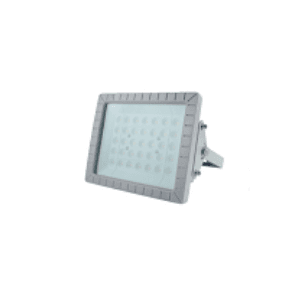

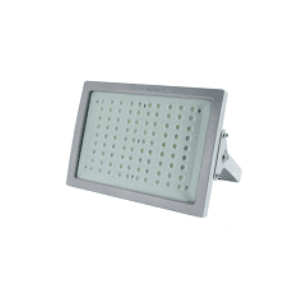

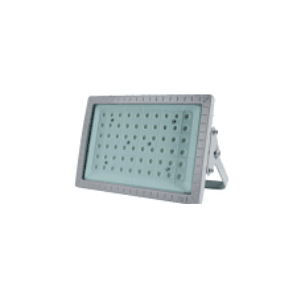

Atex Zone 1 – Explosion Proof LED Flood Light | 100W | 200W | 300W

SKU: AM-EX-FL

Price range: £279.99 through £440.00 ex. VAT (£335.99 inc. VAT)

Clear
Qty:

The Atex Zone 1 – Explosion Proof LED Flood Light is a robust and efficient lighting solution specifically developed for hazardous environments where explosive gases or dust are present. Certified for use in Zone 1 and Zone 2 areas, this floodlight delivers reliable, high-output illumination in demanding settings such as oil refineries, chemical plants, offshore platforms, and industrial processing facilities.

Available in 100W, 200W, and 300W versions, this fixture offers powerful lumen output while maintaining excellent energy efficiency. Designed to provide wide, uniform light coverage, it enhances visibility and safety across large work areas, whether mounted at height or close to the ground.

Built with a durable, corrosion-resistant aluminum alloy housing and a toughened glass lens, the floodlight is engineered to perform in harsh, exposed conditions. Its IP66-rated enclosure ensures full protection against dust and heavy water jets, making it suitable for both indoor and outdoor applications. The integrated flameproof design combines both the LED module and control gear in a single, compact unit for simplified installation and long-term reliability.

With a long operational lifespan and minimal maintenance requirements, the Atex Zone 1 – Explosion Proof LED Flood Light is a dependable, cost-effective choice for critical lighting in hazardous zones. It is backed by a full 5-year warranty, giving you the assurance of safety, performance, and long-term value in every installation.

Find out more information regarding ATEX lighting here!

WORLDWIDE SHIPPING AVAILABLE – CONTACT US NOW

Description

Technical Data:
Wattage: 100W, 200W, 300W
Lumens Per Watt 130Lm/W
Voltage 85-265Vac
IK Rating IK10
IP Rating Ip66
Colour (CCT) 5000k
Corrosion Proof: Yes (WF2)
Power Factor >0.95
Atex Certification EXD emb llC T6 GB

Ex tD A21 IP66 T135°C

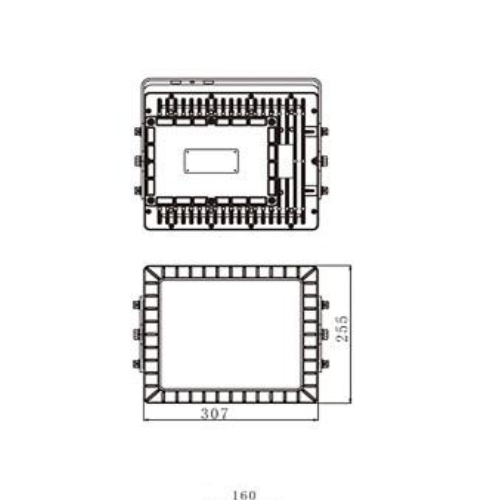

Dimensions 100w – 330mm x 255mm x 165mm

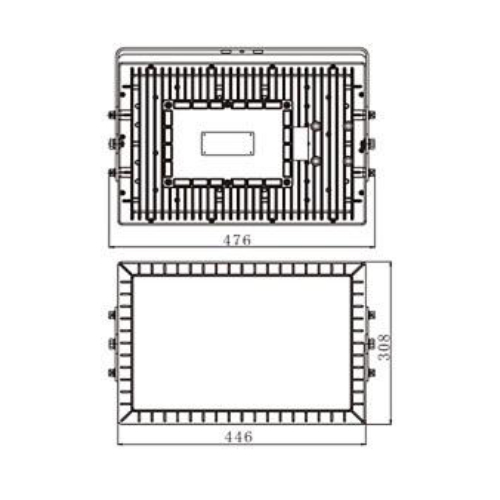

200w – 470mm x 305mm x 165mm

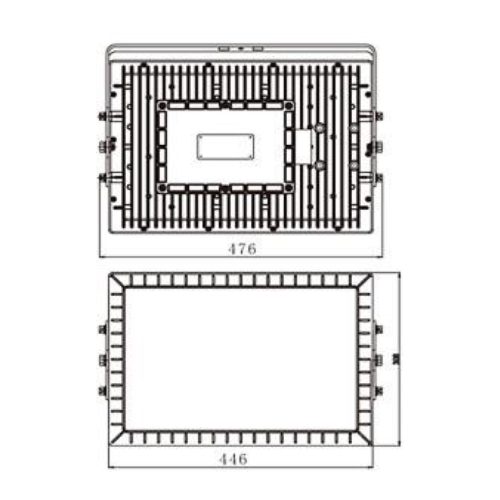

300w – 500mm x 338mm x 165mm

Lifetime >50,000 hours
Operating Tempature -40 °C to +45°C
Applications Ideal for use in hazardous environments where explosive gases, vapors, or combustible dusts may be present. Common applications include oil and gas refineries, offshore platforms, chemical processing plants, fuel storage facilities, wastewater treatment sites, and industrial workshops. Its robust, flameproof design makes it perfectly suited for both indoor and outdoor use in Zone 1 and Zone 2 classified areas, where reliable, high-output lighting is essential for safety and operational efficiency.
Warranty 5-Year Warranty
Certificates CE, RoHS & ATEX

Find out more information regarding ATEX lighting here!

Download Datasheet

Additional information

Wattage

100w, 200w, 300w

Zone

Zone 1 / Zone 21
