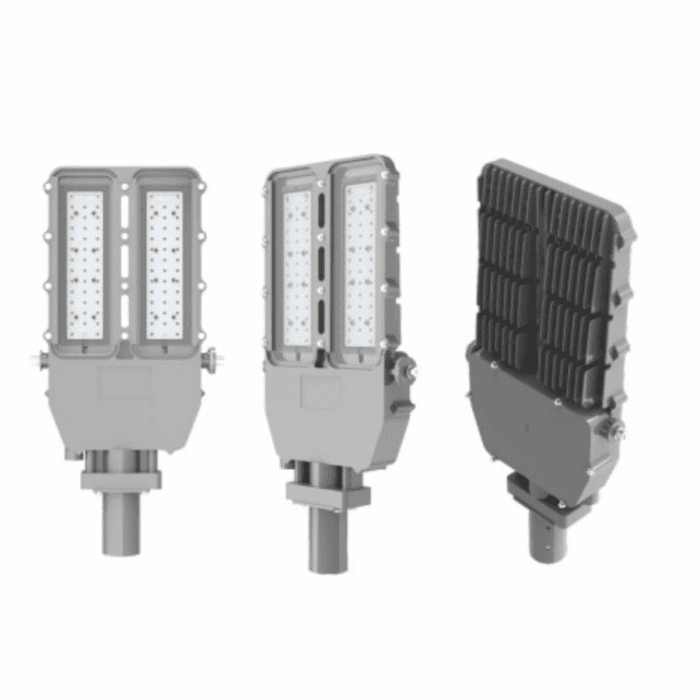

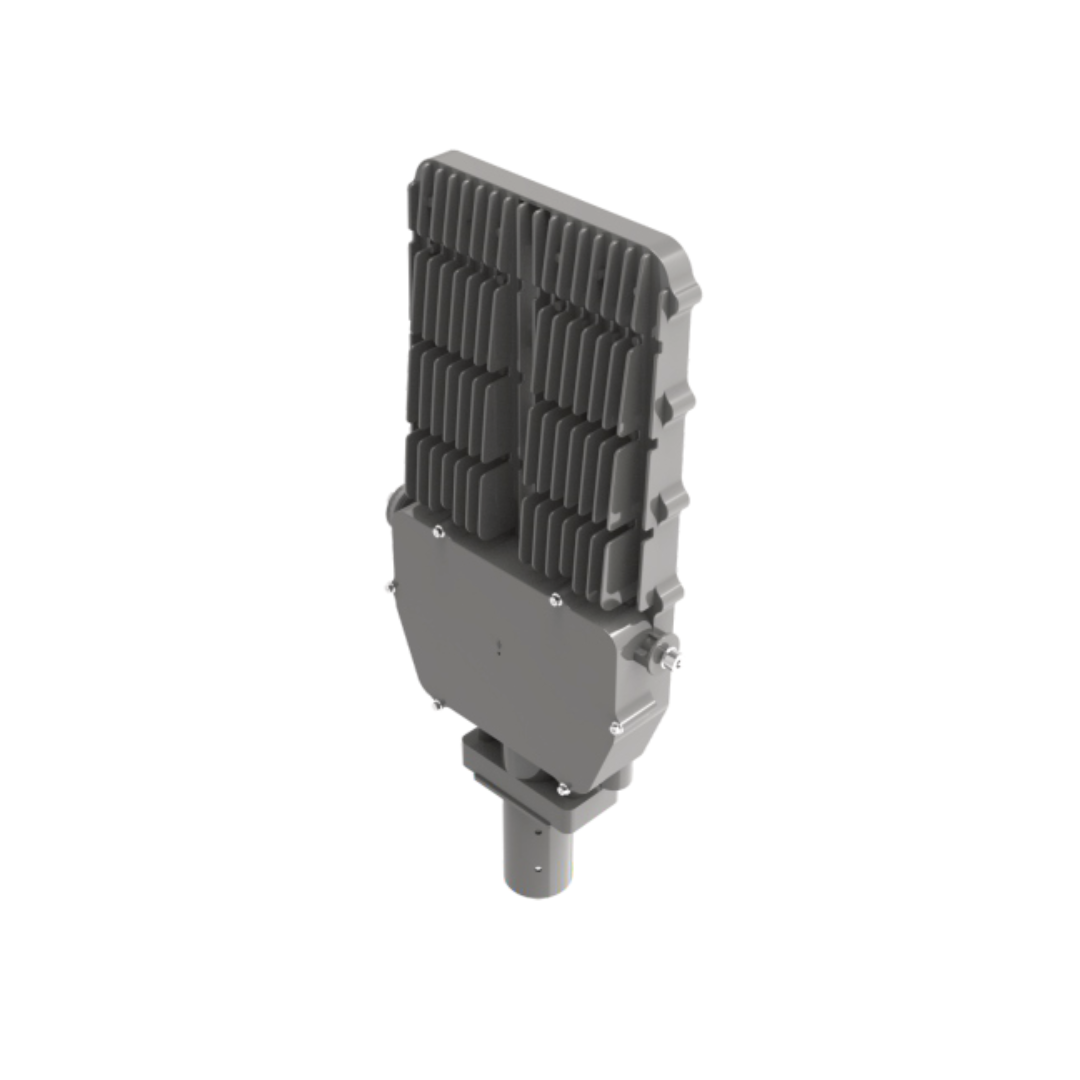

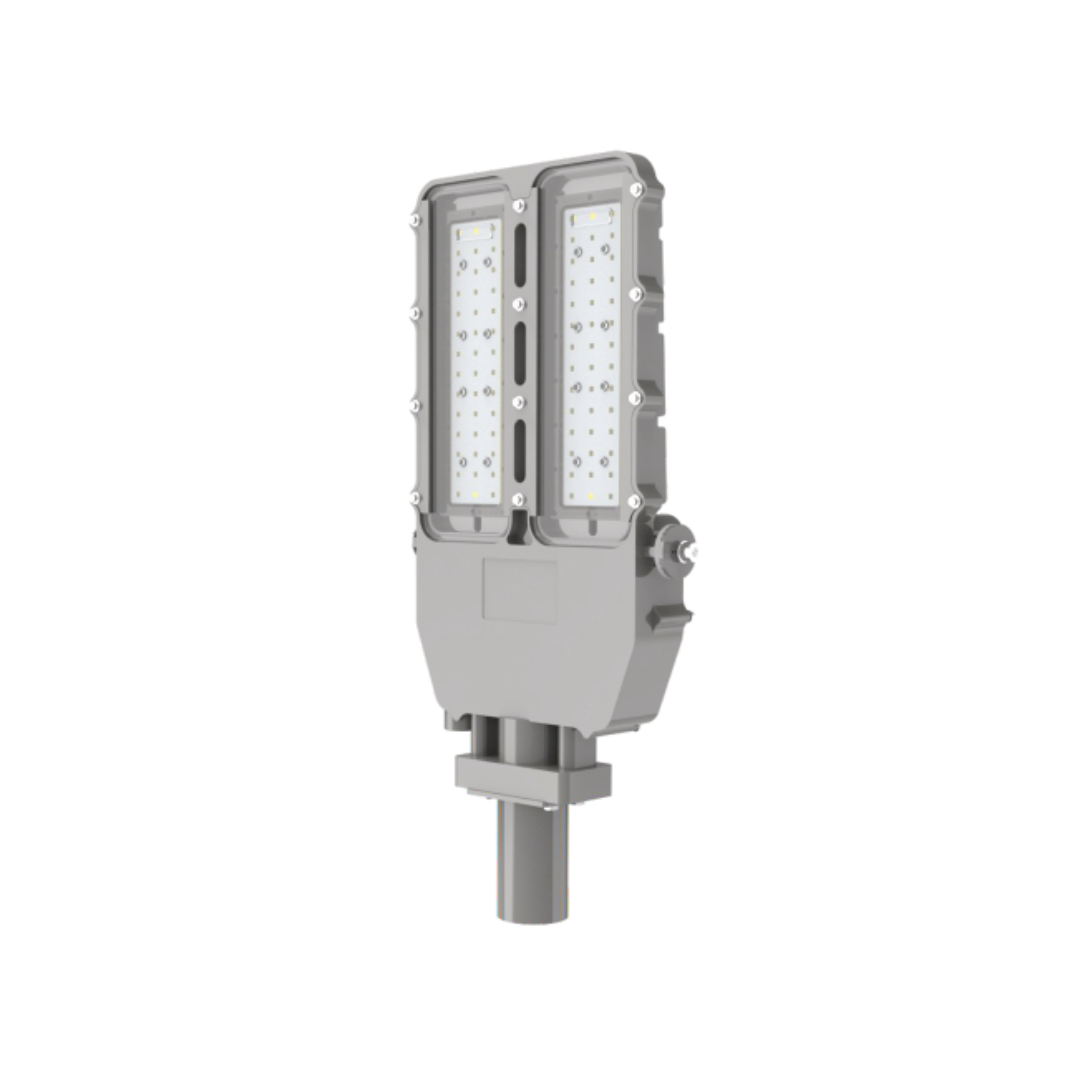

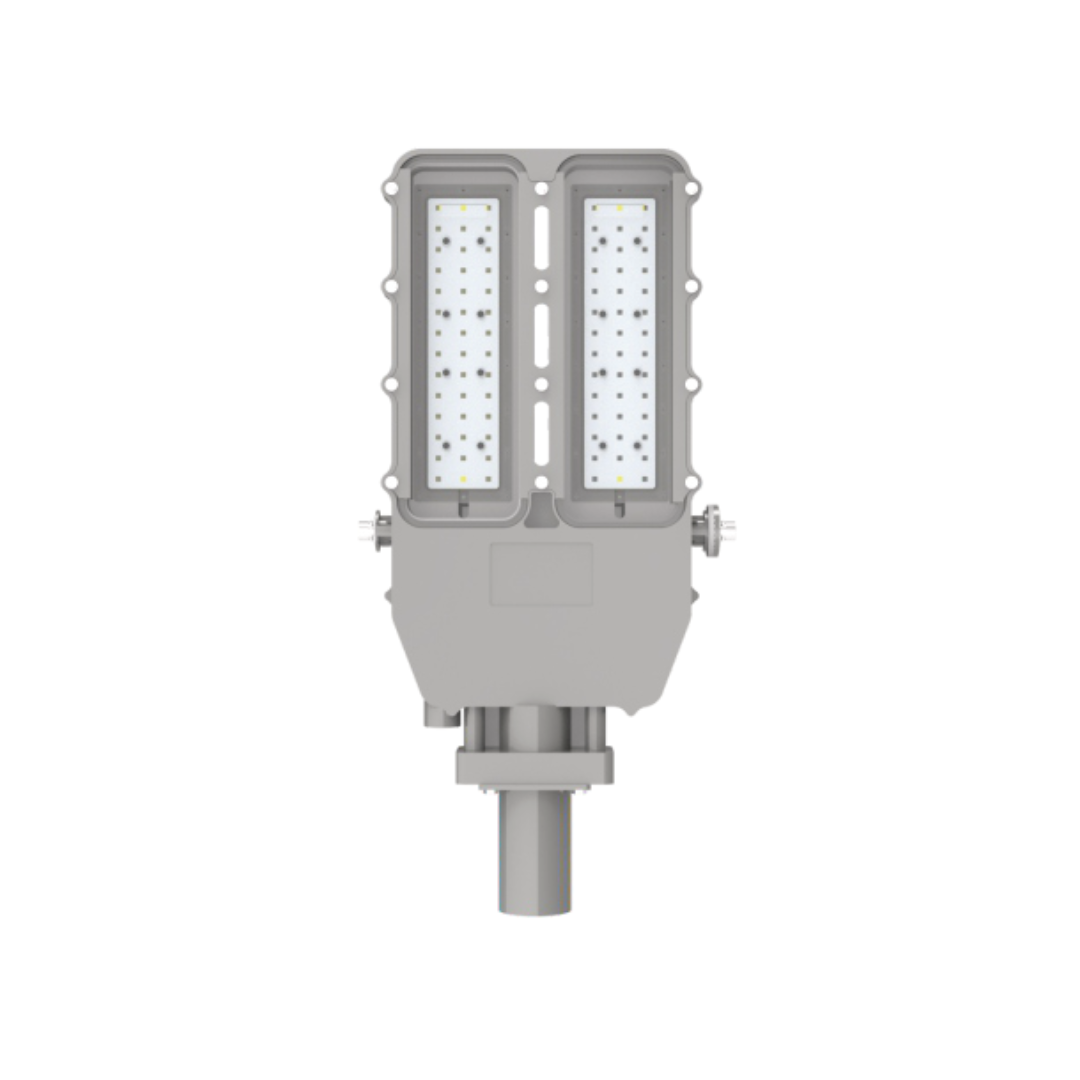

Atex Zone 1 – LED Explosion-Proof Street Light | 100w | 200w

SKU: VE-STLIGHT

Price range: £390.00 through £550.00 ex. VAT (£468.00 inc. VAT)

Clear
Qty:

Engineered for high-risk, hazardous environments, the Atex Zone 1 – LED Explosion-Proof Street Light offers unmatched performance, reliability, and safety for Zone 1 classified areas. Designed with robust ADC12 aluminum housing, stainless steel fasteners, and tempered glass for maximum durability, these lights are ideal for industries requiring hazardous area lighting solutions.

With a rugged construction and advanced optics, this series is ideal for high-risk industrial sectors such as oil and gas, chemical processing, power generation, mining, and offshore installations.

Delivering up to 140lm/w lumens per watt, this fixture is available in 100W and 200W configurations with a fixed 90° beam angle, ensuring broad, uniform illumination. The 5000K color temperature produces a crisp, daylight-quality output—perfect for visibility in safety-critical areas.

Built to endure harsh conditions, the Atex Zone 1 – LED Explosion-Proof Street Light features ADC12 aluminum housing, tempered glass, and stainless steel fasteners for excellent resistance to corrosion, moisture, and impact. Rated IP66 and IK09, it withstands water ingress, dust, vibration, and mechanical shocks in challenging industrial settings.

Mounting is fast and versatile, with support for pole, bracket, trunnion, slip fitter, and arm configurations. This series is also backed by a 5-year guarantee, ensuring long-term reliability with minimal maintenance requirements.

Find out more information regarding ATEX lighting here!

WORLDWIDE SHIPPING AVAILABLE – CONTACT US NOW

Description

Technical Data:
Wattage 100w, 200w
Lumens 140lm/w
Lumens per watt 14000lm,28ooolm
Colour Temperature 5000k
Voltage Input 200-277vAC
IP rating IP66
IK Rating IK06/07 (Without wire guard)

IK09 (With Wire Guard)

Beam Angle: 90°
Working Temperature: -40*c to +40*c
CRI >70
Lifespan: >50,000
Salt Spray: 1000 Hours
Atex Certification ll 2 G Ex eb mb llC T6… T4 Gb

ll 2 D Ex tb lllC T80°c… T100°c Db

IECEx Certification Ex eb mb llC T6…T4 Gb

Ex tb lllC T80°c…T100°c Db

Warranty: 5 years

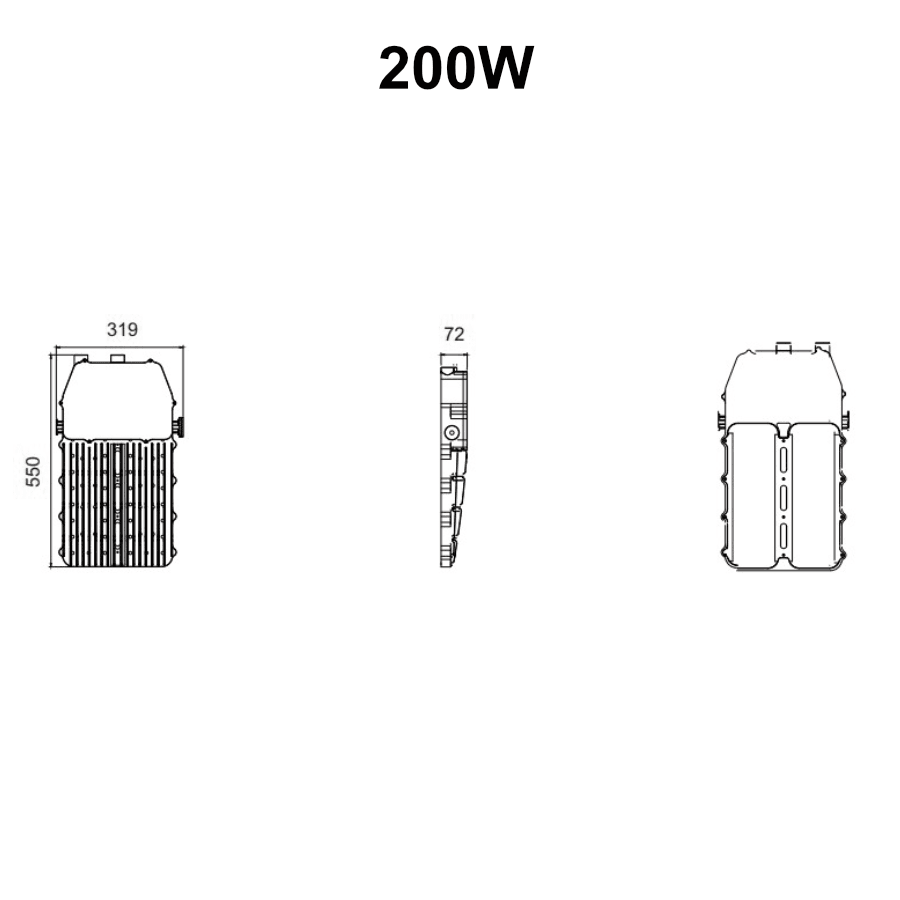

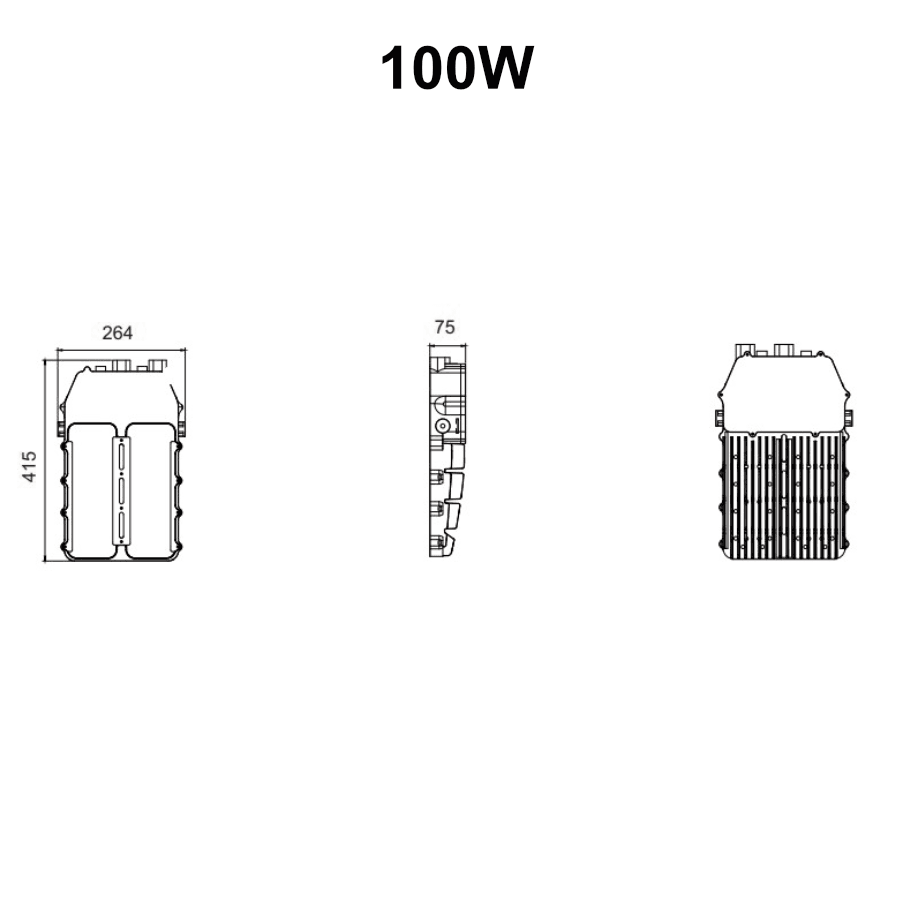

Dimensions 100w – 264mm x 415mm x 75mm

200w – 319mm x 550mm x 72mm

Certifications CE,Ex, IECEx
Materials Tempered glass, ADC12 Aluminium, Explosion proof joint surface
Application:

Petrochemical refineries, Offshore drilling platforms, Chemical storage and processing plants, Wastewater treatment facilities, Power plants and substations, Heavy industrial and hazardous material sites

Warranty: 5 Year Warranty

Find out more information regarding ATEX lighting here!

Download Datasheet

Additional information

Wattage

100w, 200w

Zone

Zone 1 / Zone 21
