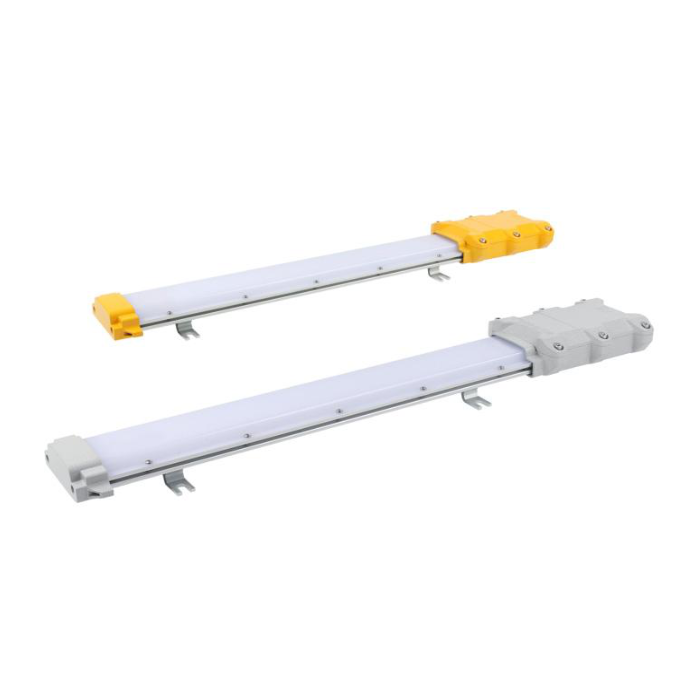

Atex Zone 1 – LED Linear Batten | 2FT – 30W | 4FT – 60W
Price range: £180.00 through £220.00 ex. VAT (£216.00 inc. VAT)
The ATEX Zone 1 – LED Linear Batten (30W | 60W) offers reliable, energy-efficient lighting for a wide range of hazardous area applications. Designed with durability and performance in mind, this product delivers consistent, high-quality illumination suitable for petroleum storage, ocean marine environments, aerospace facilities, chemical processing, metal treatment, solvent-based paint workshops, and the alcohol industry.
Key features of this ATEX light include:
- ATEX certification (Exd emb IIC T6 Gb / Ex tD A21 IP66 T135°C) Suitible for Zones 1, 2, 21 & 22.
- IP66 ingress protection
- Anti-corrosion of WF2
- Long operational lifespan of over 50,000 hours.
- Available in 30W and 60W models
We provide fast shipping across the UK and worldwide, making our products accessible no matter where you are. This product is supported by a 3 year warranty for added peace of mind.
Find out more information regarding ATEX lighting here!
WORLDWIDE SHIPPING AVAILABLE – CONTACT US NOW
Description
| Technical Data: | |
|---|---|
| Brand: | EcoMode |
| Wattage: | 30w & 60w |
| Lumens Per Watt: | 100Lm/W |
| Colour Temperature: | 5000k |
| Atex Certification | Exd emb llC T6 Gb
Ex tD A21 IP66 T135* |
| Rating | Zone 1, 2, 21 & 22 |
| Beam Angle: | 120* |
| Voltage input: | 85-265v AC |
| IP Rating: | IP66 |
| Lifespan: | ＞50,000H |
| Anti Corrosion: | WF2 |
| IK Rating: | IK08 |
| Working Temperature: | -40°C to +45°C |
| Power Factor: | >0.95 |
| Warranty: | 3 year |

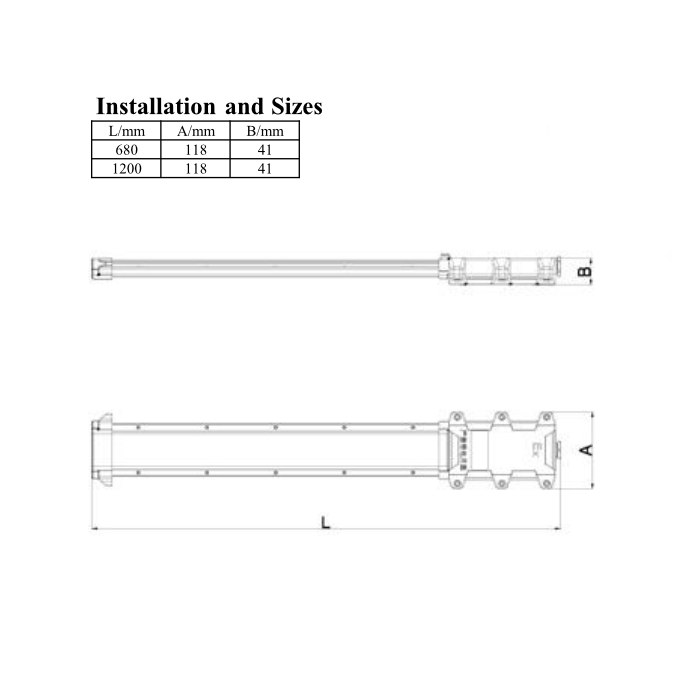

| Dimensions(CM): | 600mm x 118mm x41mm
1200mm x 118mm x 41mm cable entry – G1/2″ |
| Certificates: | CE, RoHS, UKCA, CNEx, CB, and ATEX |
| Material: | TBC |
| Application: | Perfect for use in petroleum storage, ocean marine, aerospace field,
chemical industry, metal treatment, solvent based Paint workshops and alcohol industry. |
Find out more information regarding ATEX lighting here!
Download Product Datasheet
Additional information
| Wattage | 30W, 60W |
|---|---|
| Zone | Zone 1 / Zone 21 |
