Atex Zone 1 – LED Linear light | 2FT – 40W | 4FT- 100W

SKU: LS-Atex-LED-linear-light

Price range: £280.00 through £360.00 ex. VAT (£336.00 inc. VAT)

Clear
Qty:

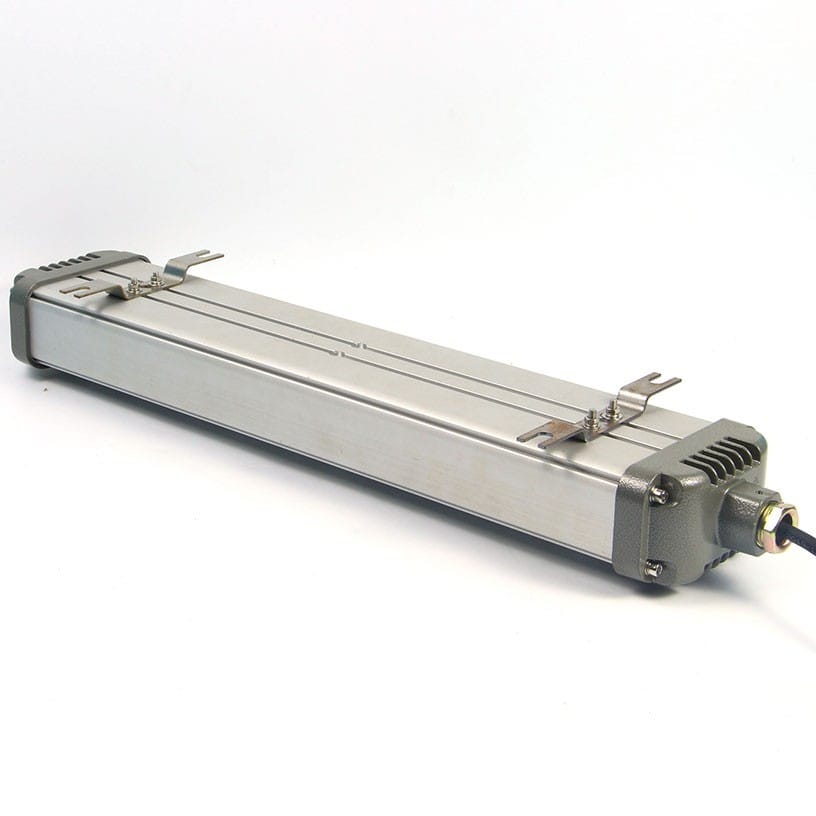

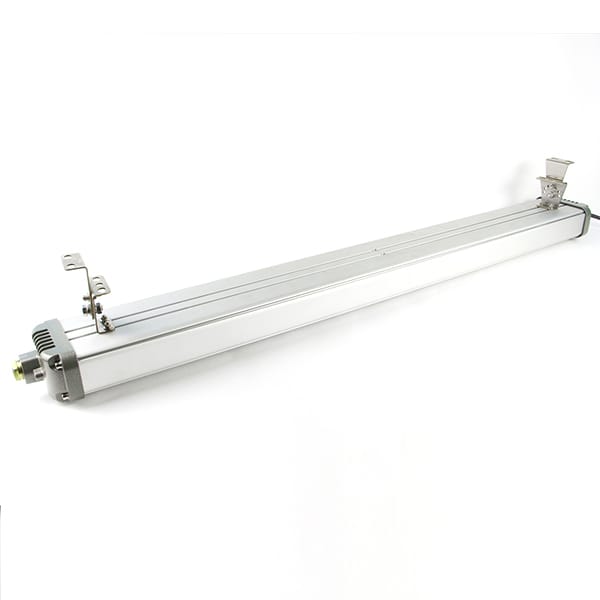

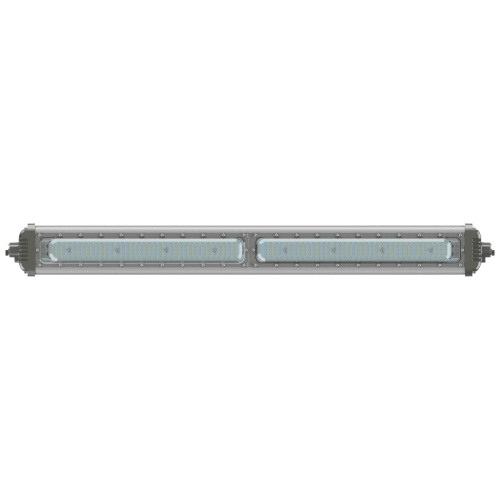

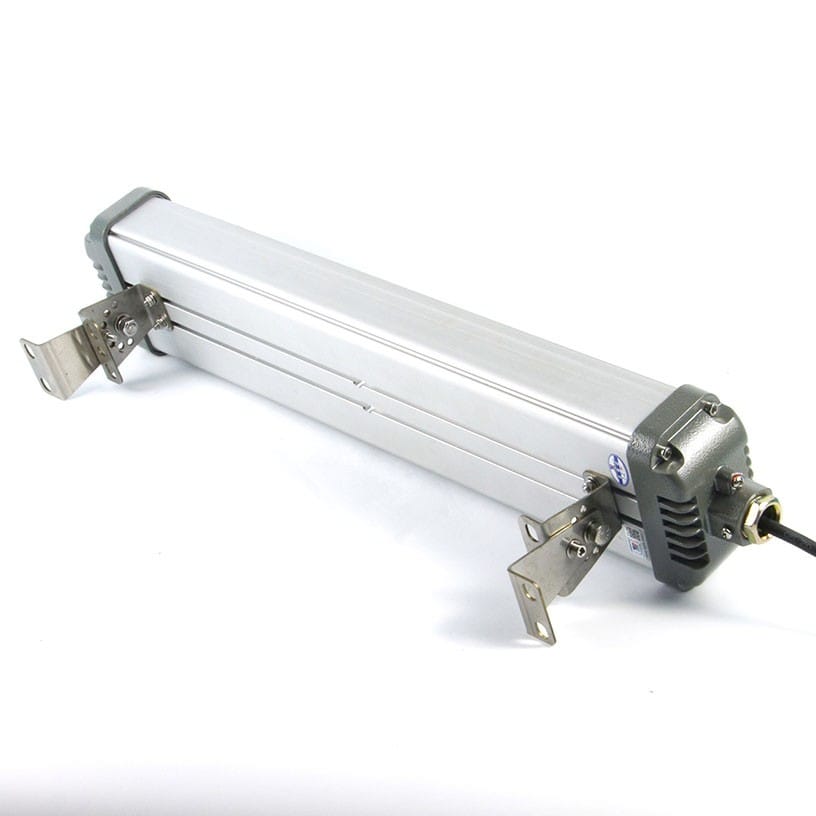

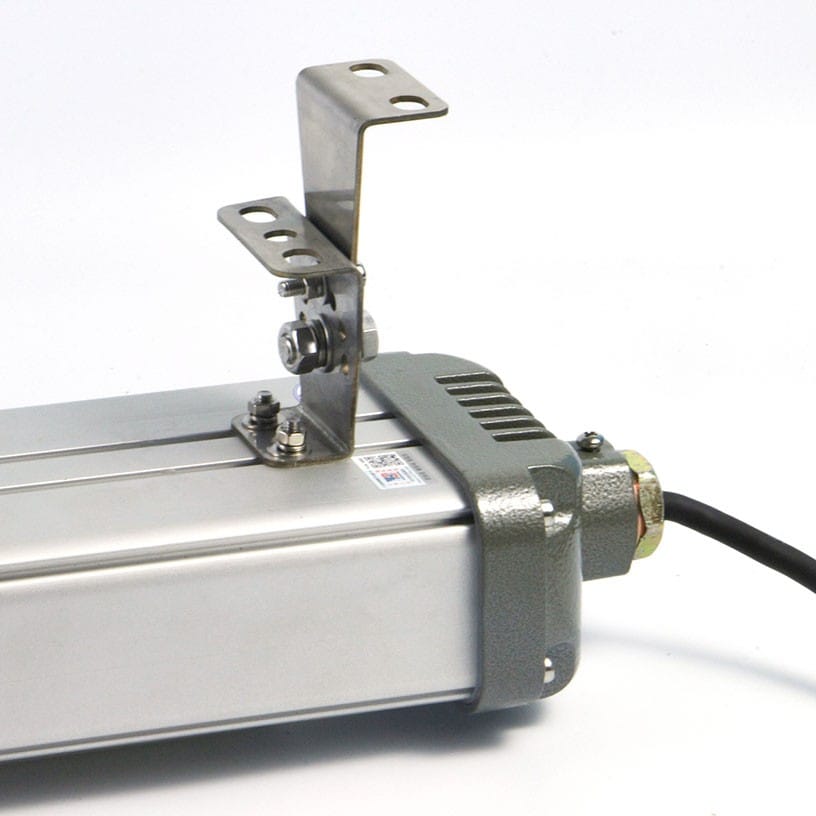

The EcoMode Atex Zone 1 – LED Linear light 40W | 100W  is a high-performance, explosion-proof lighting solution designed for hazardous environments. Available in 50W and 100W options, this light fixture delivers an impressive 120 lumens per watt, ensuring bright and efficient illumination in even the most challenging conditions.

Superior Illumination: With a colour temperature of 5000K, the EcoMode Linear Batten provides crisp, clear light that mimics natural daylight, enhancing visibility and safety. The wide 120° beam angle ensures broad coverage, reducing dark spots and maximizing illumination across large areas.

Engineered for Hazardous Zones: Rated for Zone 1, 2, 21, and 22, this LED light is certified for use in environments where flammable gases, vapours, or dust are present. Its robust design is backed by multiple certifications, including CE, RoHS, UKCA, CNEx, CB, and ATEX, guaranteeing compliance with the highest safety standards.

Built to Last: Constructed from durable, copper-free aluminium, the EcoMode Linear Batten is designed to withstand harsh conditions. It features an IP66 rating for superior dust and water resistance, along with an IK10 impact rating for maximum protection against physical damage. The light operates reliably in extreme temperatures, from -40°C to +60°C, making it suitable for a wide range of industrial applications.

Energy Efficient and Long-Lasting: With a power factor greater than 0.95, this LED batten is highly energy-efficient, reducing operational costs. Its impressive lifespan of over 100,000 hours ensures long-term, maintenance-free performance, backed by a 5-year warranty for added peace of mind.

Uncompromised Safety and Performance: Choose the EcoMode Atex Zone 1 – LED Linear light 40W | 100W as it is reliable, explosion-proof lighting that delivers unmatched performance in hazardous environments.

Find out more information regarding ATEX lighting here!

WORLDWIDE SHIPPING AVAILABLE – CONTACT US NOW

Description

Technical Data:
Chips: Bridge Lux
Wattage: 40W & 100W
Lumens Per Watt: 120Lm/W
Colour Temperature: 5000k
Atex Certification Ex nR llC T6 Gc

Ex tb lllC T80°c Db

Rating Zone 1, 2, 21 & 22
Beam Angle: 120°
Voltage input: 220v AC
IP Rating: IP66
Lifespan: >100,000H
CRI: >70
IK Rating: IK10
Working Temperature: -40°C to +60°C
Power Factor: >0.95
Warranty: 5 Years
Dimensions(MM): 40W – 635m x 125mm x 77mm

100w – 1143mm x 125mm x 77mm

Certificates: CE, RoHS, and ATEX
Material: copper free Aluminium
Application: Perfect for use in petroleum storage, ocean marine,  aerospace field,

chemical industry, metal treatment, solvent based Paint workshops and alcohol industry.

Find out more information regarding ATEX lighting here!

Download Product Datasheet

Additional information

Wattage

40W, 100W

Zone

Zone 1 / Zone 21
