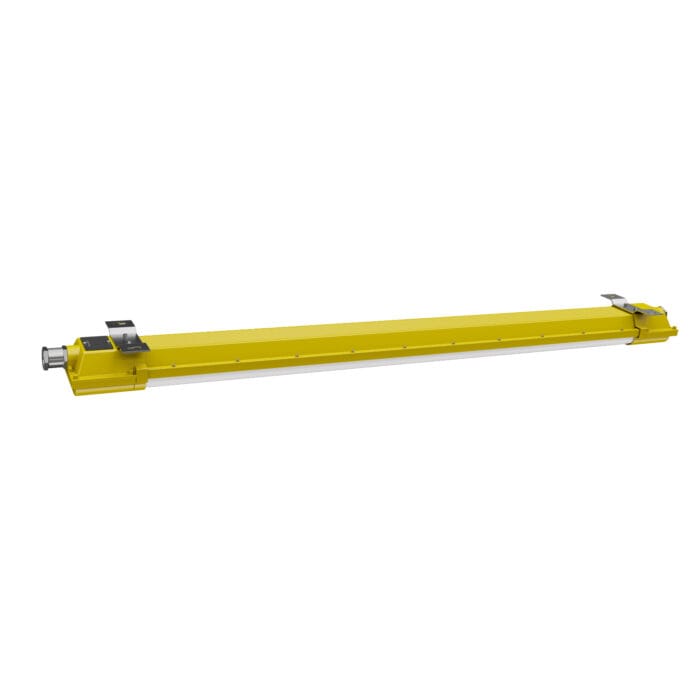

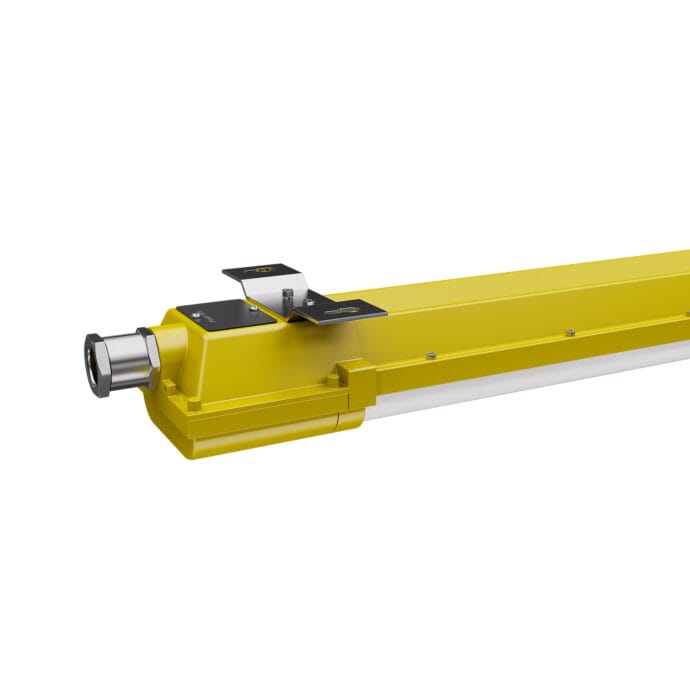

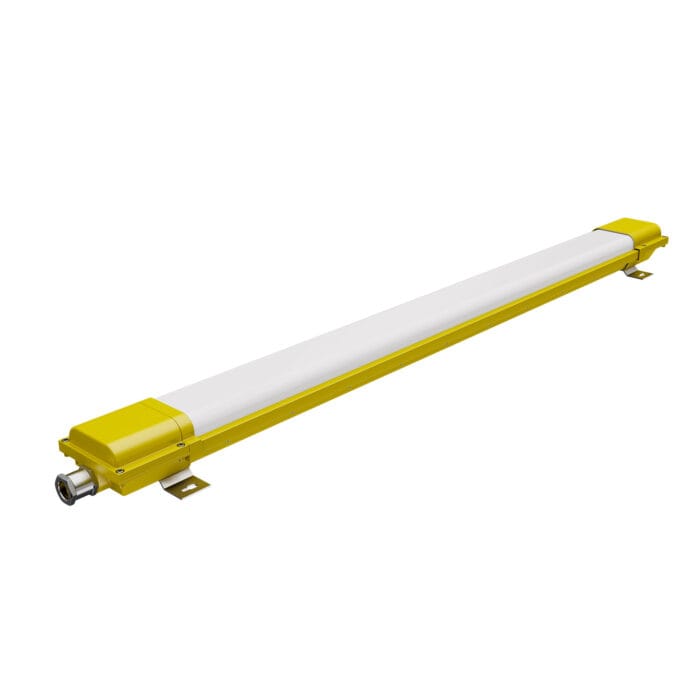

ATEX Linear LED Explosion Proof Light | 2ft – 40w and 4ft – 60w

SKU: SP-UCE4 | Brand: EcoMode

£199.99 – £249.99 ex. VAT (£239.99 inc. VAT)

Bridgelux LED Chip & Tridonic Driver – ATEX Explosion-Proof Linear Light, Linkable, 2ft 40w and 4ft 60w

High Brightness, Stable Performance, and Cost-Efficient Design

Key Features:

High bright Bridgelux LED chip and Tridonic driver used.
ATEX certified, good to use in gas environment, various inflammable and explosive places.
Yellow and grey housing available for option.
Pure Aluminium A6063 heat sink ensures excellent heat dissipation and long life.

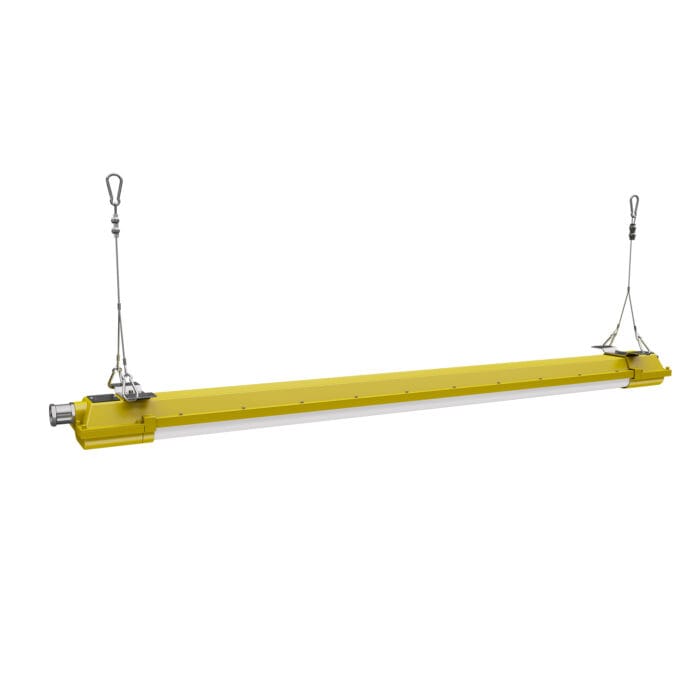

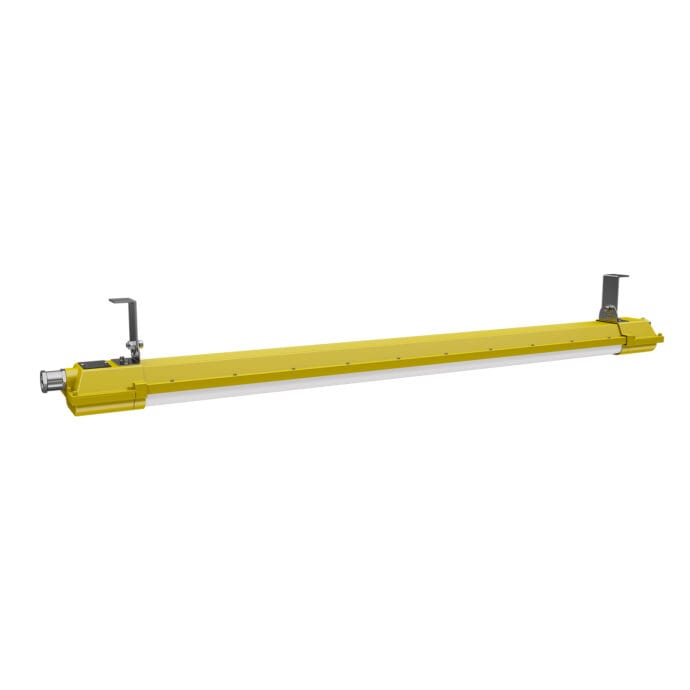

Various installation ways optional for your different applications.
140LM/W Efficiency
IP66 Waterproof Rating
ATEX Approved (Zone I, II, 21, 22)
Light Distribution Curve 120° Beam angle.
Linkable in Series 3*2.5mm2 wire through, and gland on both sides.

Description

Technical Data:
LED Chip Brand:	Bridgelux
Driver Brand:	Tridonic
Wattage:	40W & 60W
Lumens Per Watt:	>140LM/W
Colour Temperature:	5000K
Rating	Zone 1, 2, 21 & 22
Beam Angle:	120°
Voltage input:	220v AC
IP Rating:	IP66
Lifespan:	＞50,000H
CRI:	>80
IK Rating:	IK10
Working Temperature:	-25°C to +45°C
Power Factor:	>0.95
Warranty:	5 years
Dimensions(CM):	40W – 920mm x 340mm x 140mm 60w – 1370mm x 360mm x 150mm
Certificates:	CE, UKCA, Ex, CB & ATEX, RoHS
Material:	Pure Aluminium A6063
Application:	Perfect for use in petroleum storage, ocean marine and aerospace field, chemical industry, metal treatment, solvent based Paint workshops and alcohol industry.

Bridgelux LED Chip & Tridonic Driver – ATEX Explosion-Proof Linear Light

High Brightness, Stable Performance, and Cost-Efficient Design

Our ATEX Explosion-Proof LED Linear Light combines high efficiency, reliability, and safety for hazardous environments. Featuring Bridgelux LED Chips and a Tridonic Driver, it ensures excellent lighting performance while maintaining low power consumption. This product is ATEX certified, strictly complying with ATEX directives for explosive atmospheres.

Key Features:

High Efficiency:
140LM/W (20W, 40W, 60W, 75W options available), with up to 150LM/W and 80,000 lumens output.
ATEX Certification:
- II 2G Ex eb mb IIC T6 Gb
- II 2D Ex tb IIIC T(Max 110°C) Db
  Compliant with hazardous area requirements for gas and dust environments, making it ideal for use in locations prone to explosions.

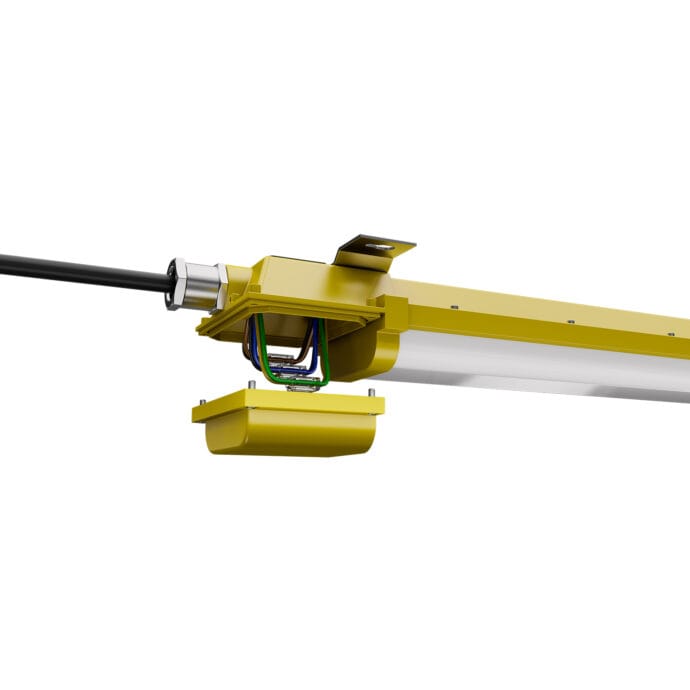

Wago Connectors:
Designed with Wago connectors for easy rewiring and reduced installation costs. Saves time and labour during installation while ensuring a secure connection.
Durability:
IP66 rating for water and dust resistance, perfect for both indoor and outdoor applications. The WF2 anticorrosive finish ensures durability for up to 5 years, ideal for industries like petroleum storage, chemical processing, aerospace, marine, and metal treatment.
Versatile & Linkable Design:

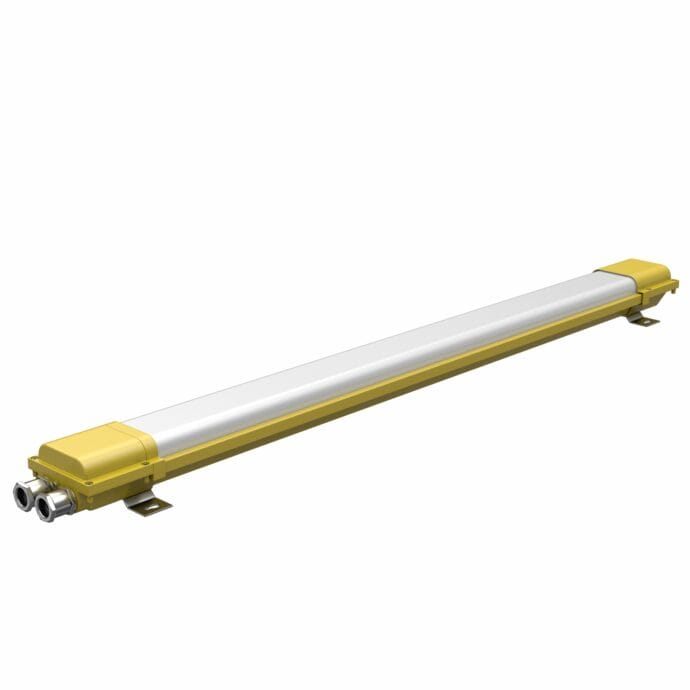

The light features a linkable in series design, with 3*2.5mm² wiring and glands on both sides for easy installation and connection of multiple units.

Applications: This explosion-proof light is perfect for use in a wide range of industries and locations, including:

Railways
Electric Power Stations
Metallurgy & Steel Manufacturing
Petroleum & Petrochemical
Chemical & Solvent-Based Paint Workshops
Aerospace & Marine
Factories, Warehouses, and Large Facilities

Safety & Compliance:

ATEX II 2G: Certified for Gas zones (Zone I, Zone II)
ATEX II 2D: Certified for Dust zones (Zone 21, Zone 22)
Designed for use in areas where explosive gases or dust are present

For more information or to request a quote, contact us today!

Additional information

Wattage	40w – 2ft, 60w – 4ft
